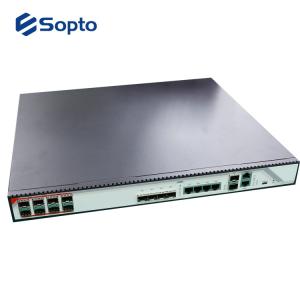

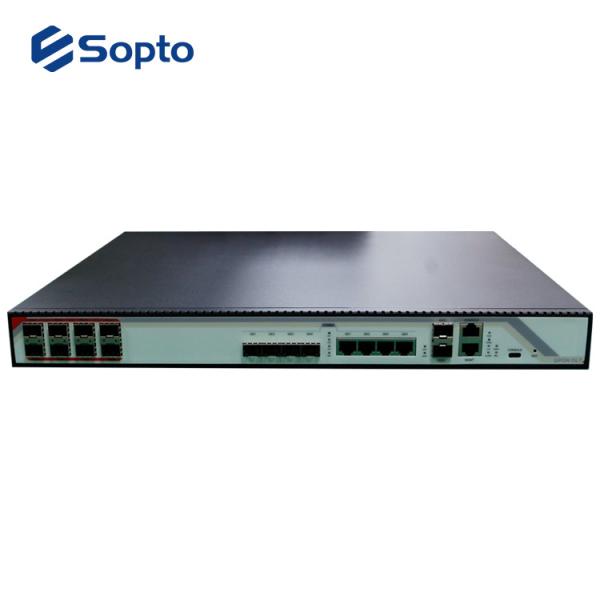

1 U Standalone 8 PON Ports 10G Epon Olt Optical Network Terminal For FTTH

1 U Standalone 8 PON Ports 10G Epon Olt Optical Network Terminal For FTTH

1 U Standalone 8PON EPON OLT Optical Network Terminal for FTTH

SPO-ES8444 series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment.

The OLT can use for“Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high performance products.

SPO-ES8444 series provides 1 USB interface, 4GE(copper) and 4GE optical interface, 4*10Gb uplink interface, and 8 EPON ports for downstream. It can support 512 ONU under 1:64 splitter ratio

Item		SPO-ES8444
Chassis	Rack	1U 19 inch standard box
Uplink Port	QTY	12
	Copper	10/100/1000M auto-negotiable,RJ45:4pcs
	Optical interface	4 GE
	10Gb uplink interface	4*10Gb
PON Port	QTY	8
	Physical Interface	SFP Slots
	SFP Type	1000BASE-PX20/20+/20++
	Max splitting ratio	1:64
USB Port	QTY	1
USB Port	Connector Type	Type-C
Management Ports		1*100BASE－TX outband port; 1 CONSOLE port
PON Port Specification(Apply to SOPTO module)	Transmission Distance	20KM
	PON port speed	Symmetrical 1.25Gbps
	Wavelength	1490nm TX,1310nm RX
	Connector	SC/PC
	Fiber Type	9/125μm SMF
	TX Power	PX20: +2.5～+7dBm PX20+: +3.5～+7dBm PX20++: +5～+8dBm
	Rx Sensitivity	-30dBm
	Saturation Optical Power	-6dBm
Management Mode		SNMP, Telnet, CLI management mode.
Management Function		Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management
Layer-two Switch		Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and monitoring
EPON Function		Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration . Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy
Layer-three Route		Support static unicast Support static multicast Support RIP routing protocol Support dynamic multicast protocol with active source
Backplane Bandwidth		112G
Dimension		44030044(mmmmmm)
Weight		5.5kg
Power Supply	220VAC	AC: 100V～240V,47/63Hz
Power Supply	-48DC	DC:-36V～-72V
Power Consumption		58W
Operating Environment	Working Temperature	0～50℃
	Storage Temperature	-40～85℃
	Relative Humidity	5～90%(non-condensing)

Application

PON OLT Network Application.png

GPON / EPON OLT Network Applications

Ordering Information

Product	Model	QTY	Unit	Configuration	Notes
1U EPON OLT	SPO-ES8444	1	Set	1U standalone GPON OLT with 1 USB interface, 8 PON ports, 4 uplink gigabit optical ports,4 uplink UTP ports, 4 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration	without SFP modules
Uplink SFP	SPT-P131G-20D	1～4	PC	Optional; A demonstration configuration is 20KM dual fiber . Optical Transceiver 1.25G SFP 1310nm SM 20KM DDM	When select the optical ports as uplink, it would be taken into consideration.
OLT PON SFP	SPT-ET4311-SE2AD	1～8	PC	Optical Transceiver EPON OLT SFP 1490nm(Tx)/1310nm(Rx),1.25G(Tx)/ 1.25G (Rx),SC,SM, PX20+ DDM	The recommended configuration is 8pcs; at least 1pc ;8 pcs at most.
	SPT-ET4311-SE2CD			Optical Transceiver EPON OLT SFP 1490nm(Tx)/1310nm(Rx), 1.25G (Tx)/ 1.25G (Rx),SC,SM, PX20++ DDM
	SPT-ET4311-SE2BD			Optical Transceiver EPON OLT SFP 1490nm(Tx)/1310nm(Rx), 1.25G (Tx)/ 1.25G (Rx),SC,SM, PX20 DDM
Gigabit Ethernet SFP	SPT-P85TG-SR	1～4	PC	Optical Transceiver 10G SFP+ 850nm MM 300M DDM	When select the 10Gb uplink ports, it would be taken into consideration.
Gigabit Ethernet SFP	SPT-P13TG-LR	1～4	PC	Optical Transceiver 10G SFP+ 1310nm SM 10KM DDM
